Bridge Type Tripod Turnstile Gate Fully Automatic 40 Persons/Min

Release time：2025-06-11 10:44viewed：times

Bridge Type Tripod Turnstile Gate

Bridge Type waist height turnstile

Fully Automatic Tripod Turnstile Gate

Place of Origin:

shenzhen

Brand Name:

cxt

Certification:

Single label product appearance patent

Model Number:

CXT-SW128Z

Chat Now Product DetailsPassing Speed:40 Persons/Min.,30people/min,35 Person/minPower Supply:AC220V,AC220V/110V Optional,110~240 V(AC),50Hz,AC220±10%Transit Speed:25~32 Persons / Min,35 Persons/min,20-30 Persons Per Minute,20-30people/min(normal Close)Working Environment:Indoor/Outdoor (with A Tent Over),-10-70 Degree,indoor / Outdoor,Indoor & OutdaoorInterface:RS485,TCP/IP,Dry Contact,Switch SignalKeyword:Turnstile Price,Tripod Turnstile,turnstile DoorApplication:Quality Inspection,Indoor/outdoor With Tent,Company,hotel,airportHighlight:

Bridge Type Tripod Turnstile Gate

Bridge Type waist height turnstile

Fully Automatic Tripod Turnstile Gate

Payment & Shipping TermsMinimum Order Quantity1Price90~3500USDPackaging DetailsCartons and wooden boxesDelivery Time20 working daysPayment TermsPublic AccountSupply Ability500psRELATED PRODUCTSVideo

Ticketing Airport Customs Drop Arm Turnstile Tripod Gate Barrier

Get Best PriceVideo

RFID Electronic Tripod Turnstile Gate Entrance Access Control Turnstile Gate

Get Best PriceVideo

High Speed Automatic Tripod Turnstile Access Control 1000mm Height Waterproof

Get Best PriceVideo

Stable Tripod Turnstile Gate Convenient With Alarm Prompt Functions

Get Best PriceCONTACT USChat NowProduct Description

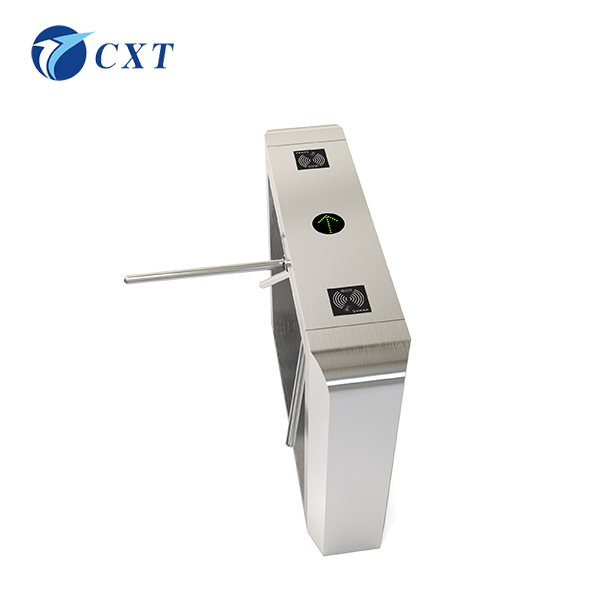

Bridge type fully automatic tripod turnstile CXT-SW128Z

Model	CXT-SW128Z
Specifications	1200280980mm
Pole length	510mm
Process	Produced by bending, cutting, welding, polishing, grinding and other processes
Material	National standard 304 stainless steel (201 stainless steel, iron paint can be customized)

Bridge Type Tripod Turnstile Gate Fully Automatic 40 Persons/Min 0

Bridge Type Tripod Turnstile Gate Fully Automatic 40 Persons/Min 1

1) It has fault self-check and alarm prompt functions, which is convenient for user maintenance and use.
2) It can be connected to any control device output control signal or button or remote control to realize single and two-way control passage.
3) It can arbitrarily set single and two-way free passage.
4) Automatic reset function: It will automatically reset every time it rotates 120 degrees, or if it fails to pass within the specified time (delay is adjustable in multiple gears), the system will automatically cancel the right to pass this time.
5) Light indication: High-brightness traffic light status indication, guiding passage.
6) Anti-tailing function: It rotates 120 degrees for each person passing. If someone follows the gate, it will automatically lock and alarm.
7) Fire input: It can be connected to the fire alarm signal to realize the uninterrupted power-off and normal opening of the gate.
8) Memory function: Accurate signal memory, when receiving legal signals for multiple consecutive times, it will automatically reset after detecting the last person passing, which greatly improves the passage speed. (This function can be selected by dialing)
9) Alarm prompt function: When illegal passage or gate rushing occurs, an alarm prompt will be automatically issued.
10) Anti-reversal function: If a reversal occurs during the passage, the gate bar will automatically lock and sound an alarm, and the passage will automatically resume after the reversal external force disappears.
11) Anti-buffer function: When illegal passage or gate rushing occurs, the gate bar will automatically rotate to a corresponding angle and then lock, realizing humanized injury prevention. When the external force disappears, it will automatically reset.
12) Unattended: The gate bar will automatically drop when the power is off, and automatically go up when the power is on.
13) Dynamic prompt: When receiving a legal passage signal, the gate bar will automatically rotate about 5 degrees, and it will gently rotate to the next reset point and stop after a light touch.

Expandable functions:
1. Remote control and management through the management computer (command docking is required).
2. Counting function to realize the number of people present.
3. Personalized voice prompt function makes the channel closer to life.

Chuangxintong adheres to the business philosophy of "integrity, innovation, and brand", relying on more than ten years of exploration and accumulation of intelligent access gate systems, breaking the traditional pattern with new design concepts, and successively launching new high-tech access products such as the channel boutique Pentium series (brushless swing gate, brushless three-roller gate, brushless wing gate, and high-end sliding gate). Chuangxintong cases are all over the country: banks, foreign companies, large state-owned enterprises, administrative units, petrochemical oil fields, passenger stations, mobile communications, prisons, smart communities, shopping malls and supermarkets, buildings/office buildings, leisure/sports/recuperation/tourist attractions.

Imported Tripod turnstile Exported Tripod turnstile Top ten brands of Tripod turnstile Face recognition Tripod turnstile Card swipe Tripod turnstile QR code Tripod turnstile Application of Tripod turnstile Tripod turnstile manufacturer Tripod turnstile system solution Repair of Tripod turnstile Maintenance of Tripod turnstile Installation of Tripod turnstile Tripod turnstile case

Tripod turnstile picture

No	Name	Common series on the market	Pentium series
1	Rotation mode	push	electric
2	Positioning principle	optical coupling fixed point	1/500 decoding,
3	Positioning mode positioning arm	horizontal position	not locked
4	Transmission mode	solenoid valve	motor
5	Lifting rod mode	manual	automatic
6	Buffer	no	yes
7	Anti-reverse	no	yes
8	Noise	high	no
9	Mechanical wear	high	no
10	Illegal alarm	no	yes
11	Passage prompt	no	yes
12	Service life	1-3 years	5-10 years
13	Door rod thickness	￠32	￠38
14	Power off drop	yes	yes
15	Memory	yes	yes
16	Fire input	yes	yes
17	Feedback signal output	yes	yes
